BIGTREETECH TFT35 V3.0.1 Touch Screen Display Controller Board for 3D Printers - Compatible with Ramps 1.4, RepRap - Dual Work Mode Selection - Perfect for DIY 3D Printing Projects and Professional Printing Workshops

$29.24

$38.99

Safe 25%

BIGTREETECH TFT35 V3.0.1 Touch Screen Display Controller Board for 3D Printers - Compatible with Ramps 1.4, RepRap - Dual Work Mode Selection - Perfect for DIY 3D Printing Projects and Professional Printing Workshops

$29.24

$38.99

25% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

26 people viewing this product right now!

SKU: 20675984

Guranteed safe checkout

Description

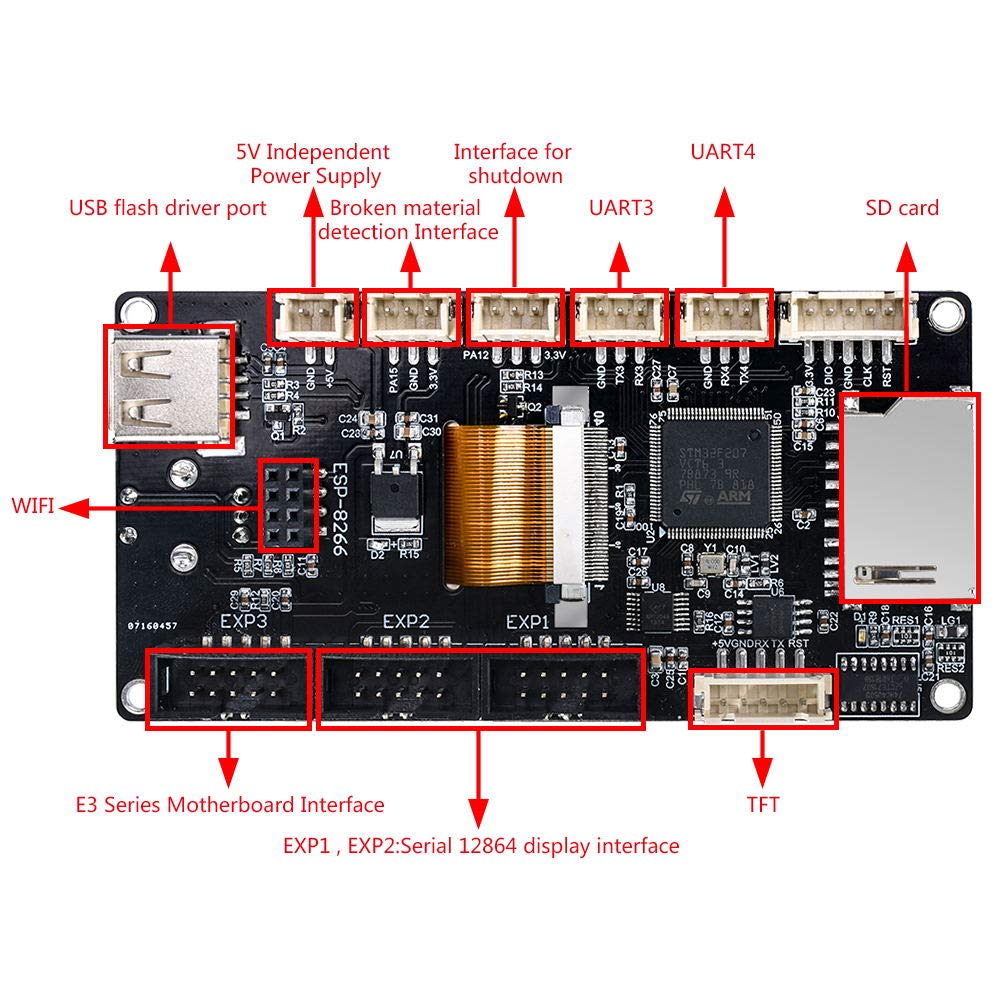

ARM Cortex-M3 series STM32F207VCT6 chip with 32-bit CPU 120MHz;Power Input：DC5VSD card logic voltage：3.3V or 5V, support MEGA2560 motherboard, with higher compatibilityLCD12864 mode uses EXP1, EXP2 and EXP3. EXP1 and EXP2 are LCD screen ports of normal motherboard, EXP3 is the LCD screen port used by SKR MINI E3 and SKR E3 DIP;Note：1. When using 12864 screen mode, connect the port EXP1 and EXP2 to the motherboard. (If user uses the SKR MINI E3 or SKR E3 DIP, just connect EXP3 to the motherboard.)There is no touch function in this mode.2. When using serial port screen mode, connect with TFT or aux-2 on the motherboard via RS232. This mode has touch function；3. Two work modes can be changed by one key. Press the encoder about 3 seconds until the mode selection page appears, then press the encoder after selecting the mode.

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

Upgrade the firmware by SD card. It is easy and convenient to operate.This display board has higher compatibility. Users can select two work modes,they are UART serial port screen mode and 12864 screen mode

Serial port screen mode supports two printing modes SD card and U disk

Reserve WIFI port, and WIFI function is realized by external WIFI module

Reserve the extension port of filament breaking detection (FIL-DET);Reserve the extension port of automatic shutdown after printing (PS-ON)

2 sets of UART serial port extension ports are reserved for DIY use

Reviews

*****

Verified Buyer

I use this with a BTT SKR MINI E3 V1.2 controler board which allows me to use either the touch screen or the Marlin screen. I don't think you could use both screen modes on the Creality control board but I'm not sure.Most of the time, I use the Marlin scroll menu but having the touch screen is great for things like homing it.For the price point, I think it is well worth it for the convenience. Updating it is easy too, just follow the instructions on the bigtreetech/BIGTREETECH-TouchScreenFirmware github site.
