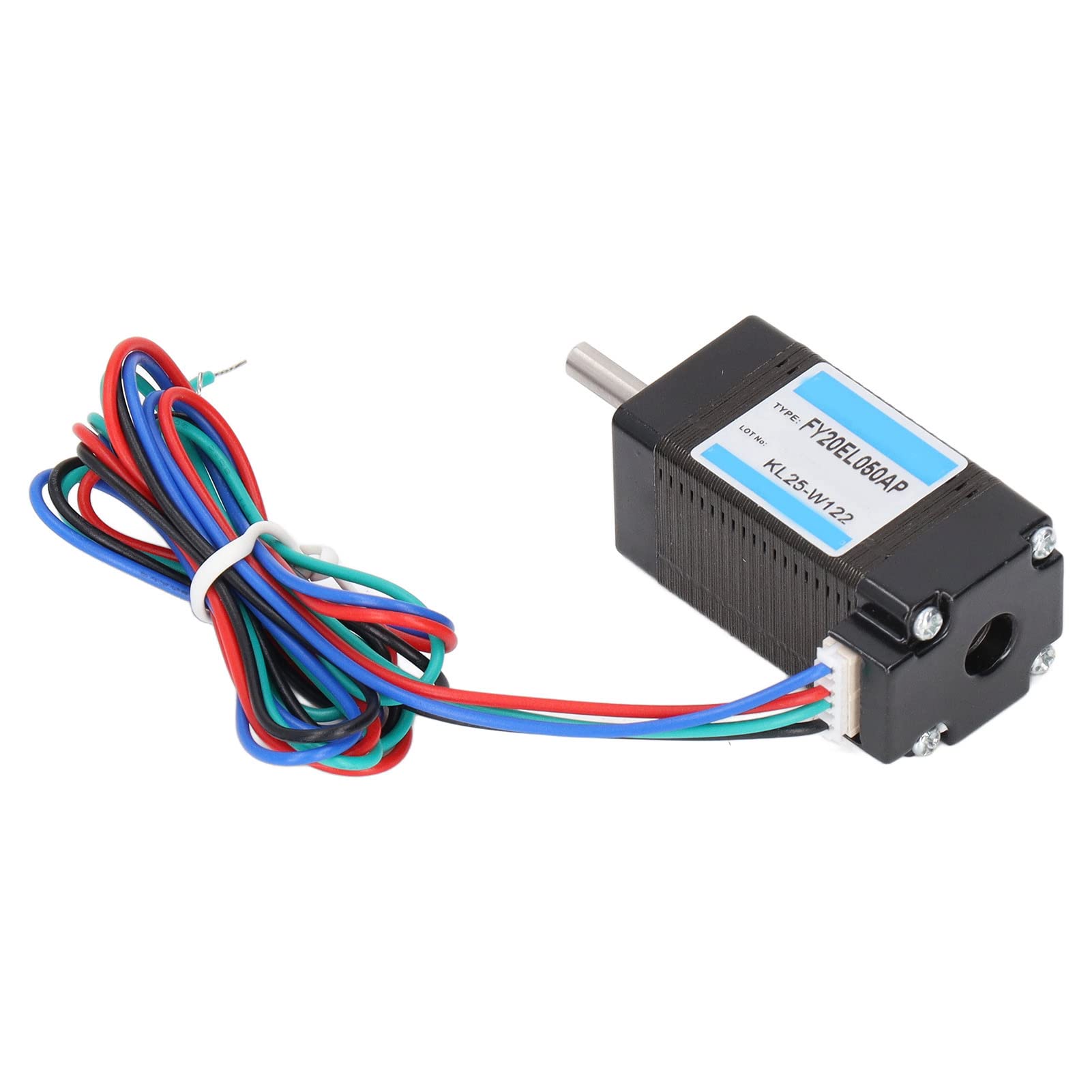

High Torque 3D Printer Stepper Motor - 20mm, 2 Phase, 0.5A, 1.8° Step Angle for 3D Printing & CNC Machines - Perfect for Extruders, Robotics, and DIY Projects
$19.27
$25.7
Safe 25%
High Torque 3D Printer Stepper Motor - 20mm, 2 Phase, 0.5A, 1.8° Step Angle for 3D Printing & CNC Machines - Perfect for Extruders, Robotics, and DIY Projects
High Torque 3D Printer Stepper Motor - 20mm, 2 Phase, 0.5A, 1.8° Step Angle for 3D Printing & CNC Machines - Perfect for Extruders, Robotics, and DIY Projects
High Torque 3D Printer Stepper Motor - 20mm, 2 Phase, 0.5A, 1.8° Step Angle for 3D Printing & CNC Machines - Perfect for Extruders, Robotics, and DIY Projects
$19.27
$25.7
25% Off
Quantity:
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
8 people viewing this product right now!
SKU: 84370503
Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay
shop
Description
Specification: Item Type: Stepper Motor Model: FY20EL050AP Material: Carbon Steel Current: 0.5A/phsae Holding Torsion: 0.16N·M Resistance: 1.0Ω/phsae Inductance: 1.05mH/phsae Rotational Inertia: 18g·cm² Step Angle: 1.8° Step Angle Accuracy: ±5% at full step. Resistance Accuracy: ±10% at 20℃. Inductance Accuracy: ±20% at 1KHZ. Temperature Rise: 80℃, maximum at rated current, 2 phase energized. Ambient Temperature: -20℃~+50℃ Adapter Driver: FYDB504T Package List: 1 x Stepper Motor
More
Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

Reliable Work: Can directly connect to the load and run at low speed without gear reduction in a state closing to stalling. Thus a high torsion to inertia ratio can be generated on bearing shaft while eliminating error caused by reduction gears.

Quick Startup: Quick in start and stop, also ensures accurate control on frequent CW and CCW rotation, and the number of pulses determines the motor position.

Broad Utility: Allows for wide application on 3D printer, CNC machine, robot and so on, practical, reliable and high in working efficiency.

Better Design: Having been through fine workmanship, the internal rotor is coated with glue to prevent burrs on the surfaces after oxidation and grinding of carbon steel, which may increase the noise.

Easy to Install: Light in weight and compact in size as well, the convenient installation can be quickly completed within minutes.
